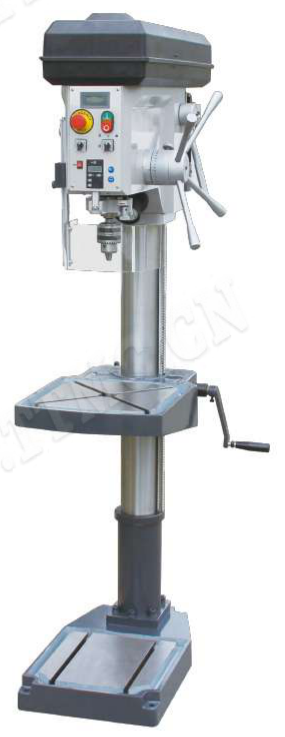

Drilling machines — TTMC TB36
Tengzhou Tri-Union Machinery Co., Ltd.
Manufacturer item number: 390103; Maximum drilling diameter: in steel:34mm; Spindle travel: 160mm
This page lists confirmed manufacturer data. The scope of supply and unlisted parameters will be clarified when preparing the quotation.
Request price and configuration ↗Price, availability and lead time are not stated. They will be confirmed in the quotation.
| Manufacturer item number | 390103 |
|---|---|
| Maximum drilling diameter | in steel:34mm |
| Spindle travel | 160mm |
| Spindle taper | MT4 |
| Spindle speed range | 130-4940rpm |
| Number of spindle speed steps | 9 |
| Table dimensions | 400×500mm |
| T-slot | 14mm |
| Column diameter | 115mm |
| Distance from spindle to table | 790mm |
| Distance from spindle to base | 1270mm |
| Motor power | 1.5/2.2kW |
| Overall height | 1930mm |
| Packing dimensions | 110×67×210cm |
| Net / gross weight | 360/420kg |
This page lists confirmed manufacturer data. The scope of supply and unlisted parameters will be clarified when preparing the quotation.
