Ironworkers
AHYW Q35Y-16
- Punching Pressure
- 55 T
- Max. cutting thickness of steel plates
- 16 mm
- Plate strength
- ≤450 N/mm²
- Angle of Shear
- 7 °
Availability on request
Availability on request
- Manufacturer item number
- 372304
- Mild steel round bar
- 22 mm
- Mild steel square bar
- 20 mm
- Mild steel flat bar
- 90×14 mm
| Manufacturer item number | 372304 |
|---|---|
| Mild steel round bar | 22 mm |
| Mild steel square bar | 20 mm |
| Mild steel flat bar | 90×14 mm |
| Mild steel angle section | 60×7 mm |
| Mild steel T-section | 60×7 mm |
| Mild steel plate thickness | 10 mm |
| Packing dimensions | 106×36×84 cm |
| Net / gross weight | 130/158 kg |
| Throat depth | 160 mm |
| Punch tooling dimensions | 55×34×18 mm |
In the same category
Documentation
Request the manufacturer catalog, installation drawing and confirmed specification with your quotation.
Ironworkers
AHYW Q35Y-20
- Punching Pressure
- 75 T
- Max. cutting thickness of steel plates
- 20 mm
- Plate strength
- ≤450 N/mm²
- Angle of Shear
- 8 °
Availability on request
Ironworkers
AHYW Q35Y-25
- Punching Pressure
- 110 T
- Max. cutting thickness of steel plates
- 25 mm
- Plate strength
- ≤450 N/mm²
- Angle of Shear
- 8 °
Availability on request
Equipment request
Start with your task.
Describe the product and expected result. Leave unknown parameters blank; we will clarify them together.

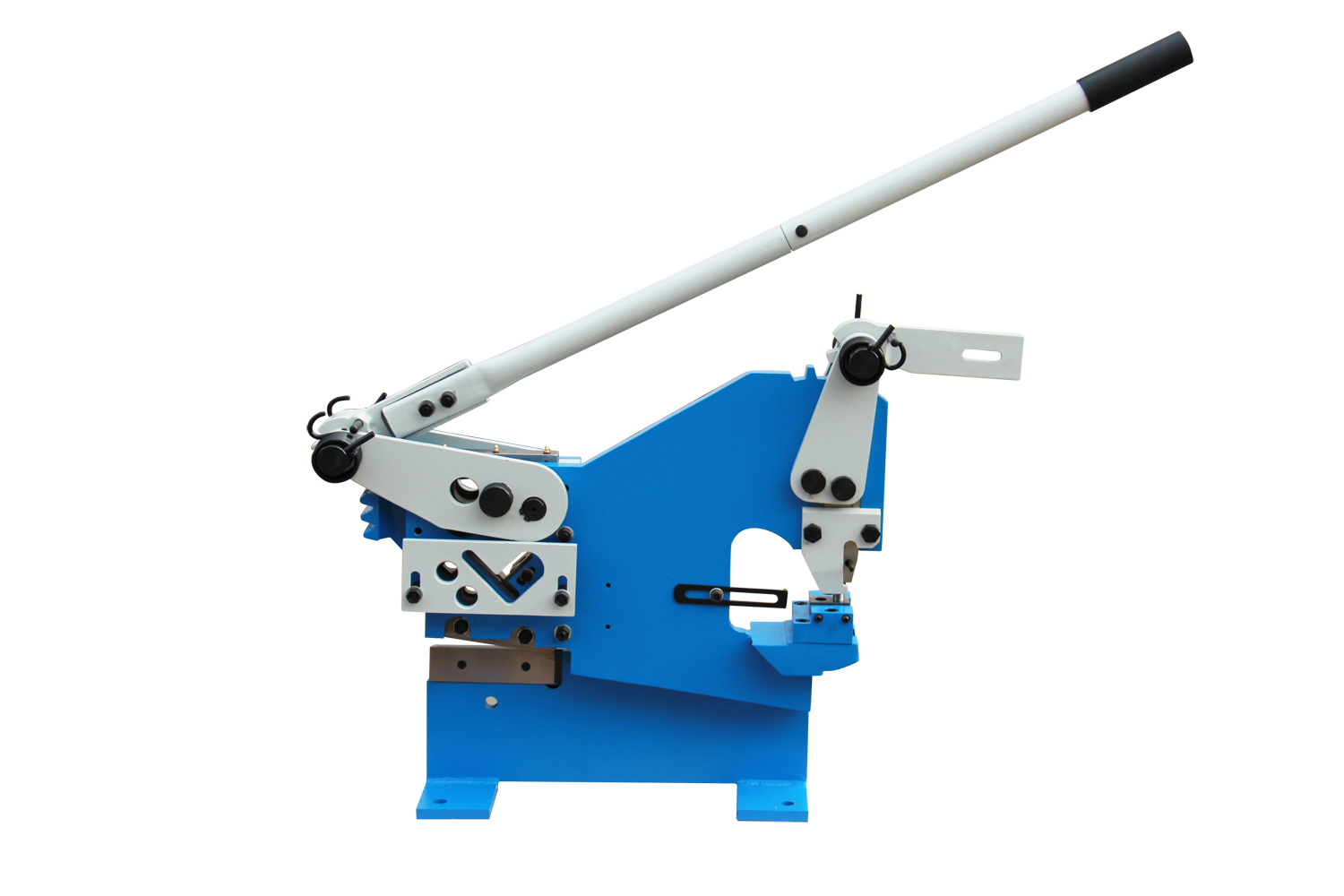

- TTMC PBS-9
