Availability on request
- Max swing over bed
- Φ360 mm
- Max diameter workpiece
- Φ360 mm
- Max swing over toolpost
- Φ180 mm
- Max machining length
- 300 mm
| Max swing over bed | Φ360 mm |
|---|---|
| Max diameter workpiece | Φ360 mm |
| Max swing over toolpost | Φ180 mm |
| Max machining length | 300 mm |
| Spindle nose style | A2-5 |
| Hydraulic chuck | Φ169 mm |
| Spindle motor power | 5.5/7.5 kW |
| Maximum spindle speed | 4500 rpm |
| Spindle bore diameter | Φ56 mm |
| Bar auto feeding bore | Φ45 mm |
| X/Z axis travels | 380/330 mm |
| Rapid travel X/Z | 12/16 m/min |
| X/Z axis positioning accuracy (300 mm, as stated) | ±0.005/±0.005 mm |
| X/Z axis positioning repeatability (300 mm, as stated) | ±0.003/±0.003 mm |
| Toolpost station | Turret / gang tooling |
| Barrel diameter tailstock | No tailstock |
| Overall size L×W×H | 2500×1500×1600 mm |
| Machine weight | 2000 kg |
In the same category
Documentation
Request the manufacturer catalog, installation drawing and confirmed specification with your quotation.
Equipment photo on request
Turn-mill centres
WHITE EAGLE CKM40
- Max swing over bed
- Φ400 mm
- Max diameter workpiece
- Φ300 mm
- Max swing over toolpost
- Φ250 mm
- Max machining length
- 370 mm
Availability on request
Equipment photo on request
Turn-mill centres
WHITE EAGLE CKM45
- Max swing over bed
- Φ450 mm
- Max diameter workpiece
- Φ400 mm
- Max swing over toolpost
- Φ220 mm
- Max machining length
- 450 mm
Availability on request
Equipment request
Start with your task.
Describe the product and expected result. Leave unknown parameters blank; we will clarify them together.

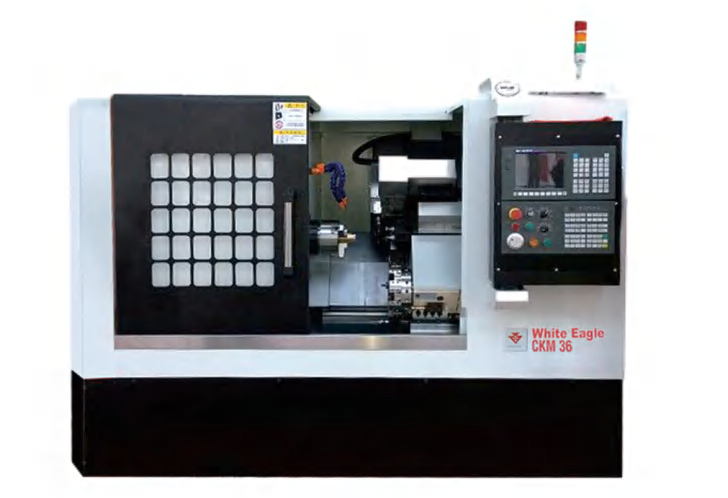

- WHITE EAGLE CKM36
