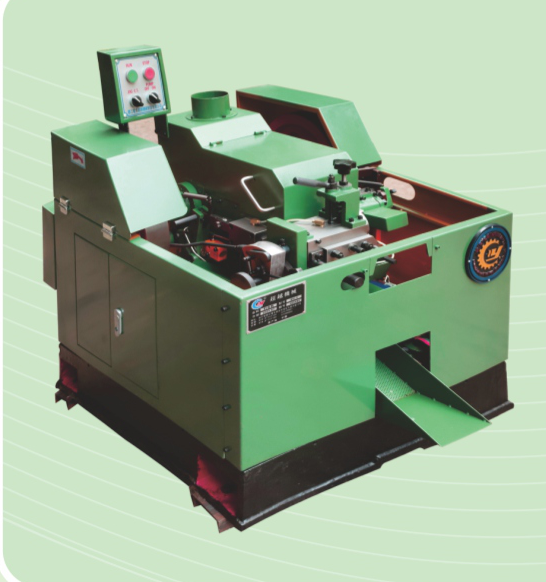

BEYOND SH-5
- Maximum cut-off diameter
- 3 mm
- Maximum blank length
- 20 mm
- Slide / cylinder stroke
- 38 mm
MOD-0016
Fastener heading machines · MOD-0021

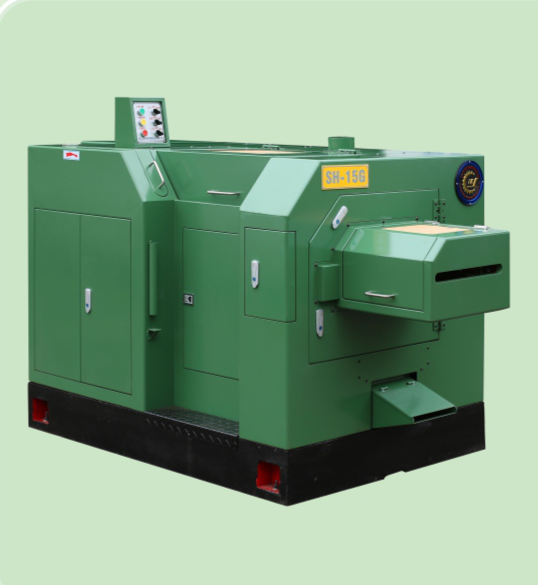

Fastener heading machines — BEYOND SH-15G
Dujiangyan Beyond Machinery Manufacture Co., Ltd.
Maximum cut-off diameter: 5 mm; Maximum blank length: 75 mm; Slide / cylinder stroke: 115 mm
This page lists confirmed manufacturer data. The scope of supply and unlisted parameters will be clarified when preparing the quotation.
Request price and configuration ↗Price, availability and lead time are not stated. They will be confirmed in the quotation.
| Maximum cut-off diameter | 5 mm |
|---|---|
| Maximum blank length | 75 mm |
| Slide / cylinder stroke | 115 mm |
| Production rate | 130-150 pcs/min |
| Main die dimensions | φ34.5*100.5 mm |
| Cut-off die dimensions | φ19*35 mm |
| First punch die dimensions | φ31*85 mm |
| Second punch die dimensions | φ31*90 mm |
| Motor power | 3 kW |
| Overall dimensions L×W×H | 1.92*1.1*1.19 m |
| Net weight | 2200 kg |
This page lists confirmed manufacturer data. The scope of supply and unlisted parameters will be clarified when preparing the quotation.
Other models in this category
A shared category does not imply technical interchangeability.
Fastener heading machines

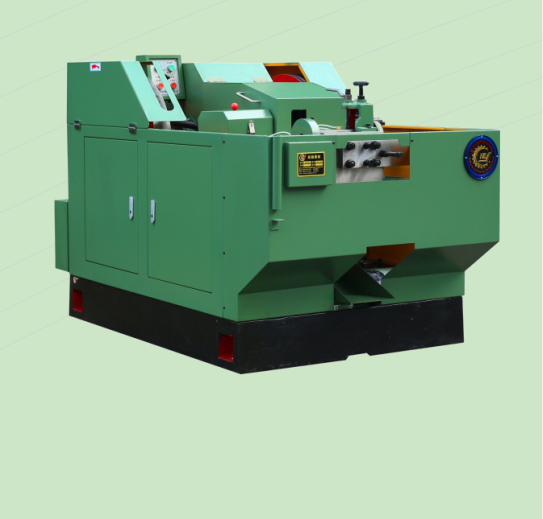

BEYOND SH-15LK
- Maximum cut-off diameter
- 6 mm
- Maximum blank length
- 30 mm
- Slide / cylinder stroke
- 102 mm
MOD-0035
Fastener heading machines

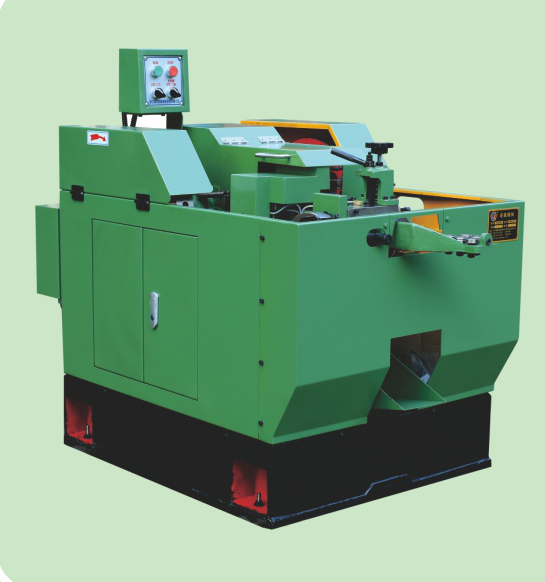

BEYOND SH-5A
